Reliable AC DC DB for Efficient Power Distribution and Conversion

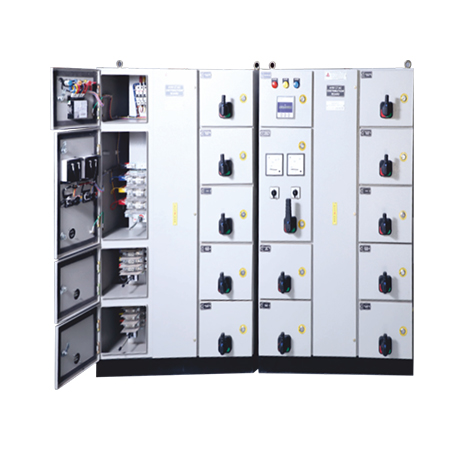

AC/DC DB
Range | UPTO 1000A |
Aux. Voltage | 24V to 220VDC |
Type | Scada and Non-Scada |
Communication Pot | RS485 |
Ingression Protection | IP55 |
Short Circuit Protection | 35KA |
Temperature Rise limit | 85 Dig |
- At Digital Electric, we specialize in the design and manufacturing of high-performance AC DC DB (Distribution Boards) that ensure safe and seamless conversion and distribution of both AC and DC power across critical systems. These hybrid boards are essential for facilities requiring an uninterrupted power supply for both AC and DC circuits, especially in automation, control, and industrial infrastructure.
- As a trusted AC DC DB manufacturer, we build compact, IS/IEC-compliant panels that deliver operational efficiency, robust protection, and long-lasting durability—even in challenging industrial conditions.
Key Features
- Separate compartments for AC and DC sections
- Robust protection via MCBs, MCCBs, and fuses
- Integrated terminal blocks for organized wiring
- Energy meters and voltage monitoring (optional)
- IP-rated enclosure (IP42 to IP65)
- Support for both 230V/415V AC and 24V/48V/110V DC circuits
- Clear phase/neutral/earth segregation
- Flame-retardant powder-coated enclosures
- Ready for SCADA and PLC integration
Ideal for Power-Intensive and Critical Applications
Our AC DC DB panels are extensively used in:
- Substations and power plants
- Control rooms and relay panels
- Industrial automation systems
- Oil & gas sector
- Railway and metro stations
- Data centers and telecom infrastructure
- Renewable energy plants (solar/wind)
They ensure reliable dual power handling while maintaining isolation, safety, and efficient circuit management in complex electrical systems.
Engineered to Your Power Conversion Needs
Each DB is custom-designed to match your electrical architecture and operational demands:
- Single-phase and three-phase AC input compatibility
- Options for DC output: 24V, 48V, 110V, or as designated
- Integration with SMPS or battery backup units
- Easy cable termination with labeled terminals
- Internal partitioning for AC/DC isolation
- Supplied with GA drawings, SLD, and wiring diagram
Why Choose Digital Electric as Your AC DC DB Manufacturer?
- Decades of experience in hybrid panel manufacturing
- IS 8623 and IEC 61439 compliant designs
- In-house engineering, fabrication, and testing
- Customization flexibility based on load type and usage
- Short delivery timelines and installation support
- Integration-ready with energy management systems
Our AC DC DBs ensure maximum safety, system flexibility, and real-time monitoring, making them an ideal fit for mission-critical electrical environments.
Need a Custom AC DC Distribution Board?
Let Digital Electric support your hybrid power system with a reliable and tailor-made AC DC DB. Whether your need is industrial, institutional, or infrastructure-based, we offer end-to-end solutions for your dual-power distribution requirements.
Contact us today to get a custom quote or expert consultation.
FAQs
What is an AC DC DB?
An AC DC DB is a hybrid distribution board that manages both alternating current (AC) and direct current (DC) circuits within the same panel while maintaining clear segregation for safety.
Where are AC DC DBs commonly used?
They are used in power control rooms, substations, solar/wind systems, and industrial automation setups.
Do you offer custom input and output voltage configurations?
Yes. We offer a wide range of voltage options, including 24V, 48V, 110V DC, and 230/415V AC.
Are your panels weatherproof?
Yes. Enclosures can be IP55 or IP65-rated based on indoor or outdoor use.
What safety features are included?
Each panel includes MCB/MCCB protection, voltage isolation, short circuit protection, and surge protection.
Can I integrate this DB into a SCADA system?
Yes. Our panels are built with SCADA and remote monitoring compatibility.
Do you provide documentation and drawings?
Yes. All panels come with GA drawings, SLD, wiring layout, and compliance certificates.
Can you support battery-based DC backup integration?
Yes. We can integrate SMPS or battery charging units into the DB as needed.
What is the lead time for delivery?
Usually, it takes two to four weeks, depending on how customized it is.
Do you offer on-site support or installation?
Yes. We provide both remote and on-site technical assistance upon request.
